UP Brazos River Bridge Woes

June 7, 2016

Over the past week or so, I’ve made 3 trips to see the Brazos River at historic levels due to extreme rain events in Central Texas. This post will cover the 3 different trips in chronological order.

May 31, 2016

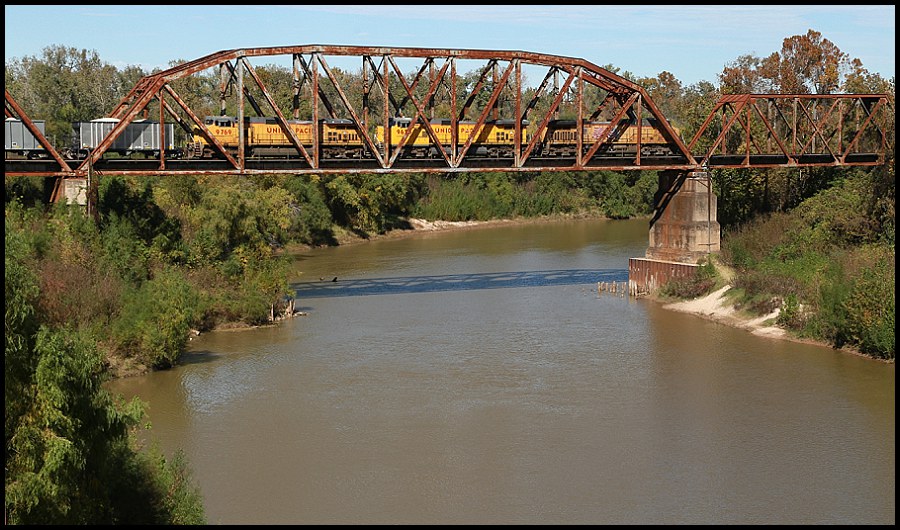

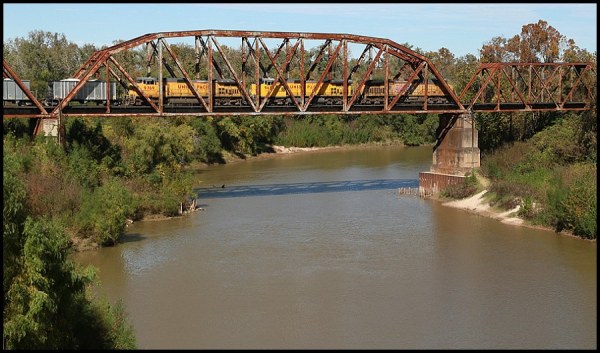

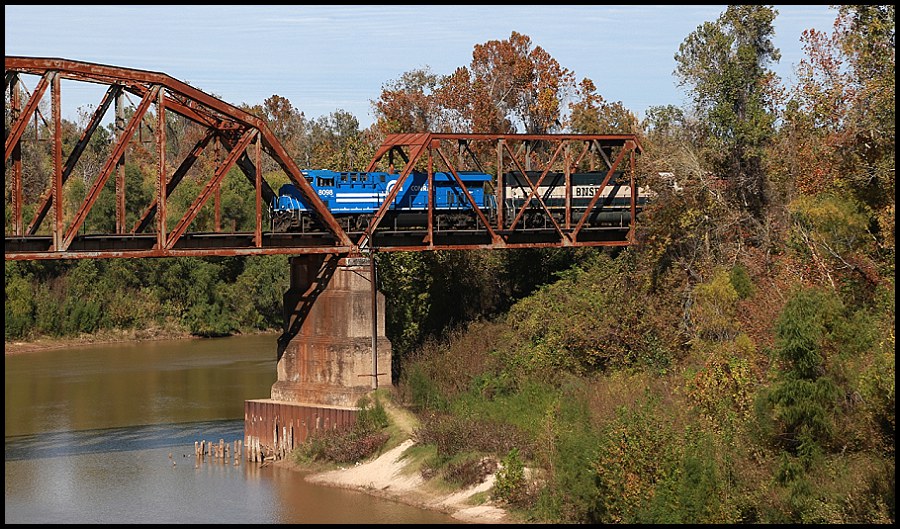

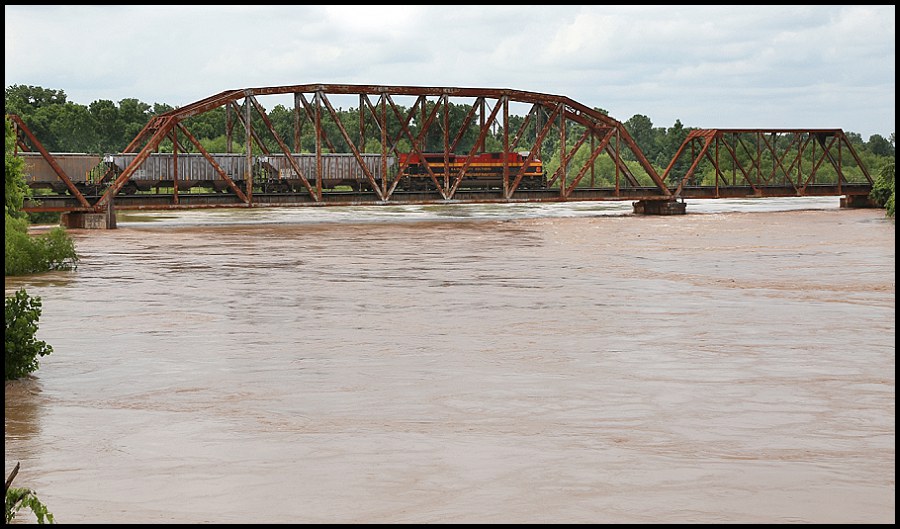

A KCS empty grain train proceeds east across the Brazos River bridge at Richmond, TX, near MP 32 of the Glidden sub, about 30 miles southwest of Houston, TX. Compare this first image to the second image, from 11/24/2014, showing the Brazos River under more typical conditions.Brazos-1_WEB

Brazos-4_WEB

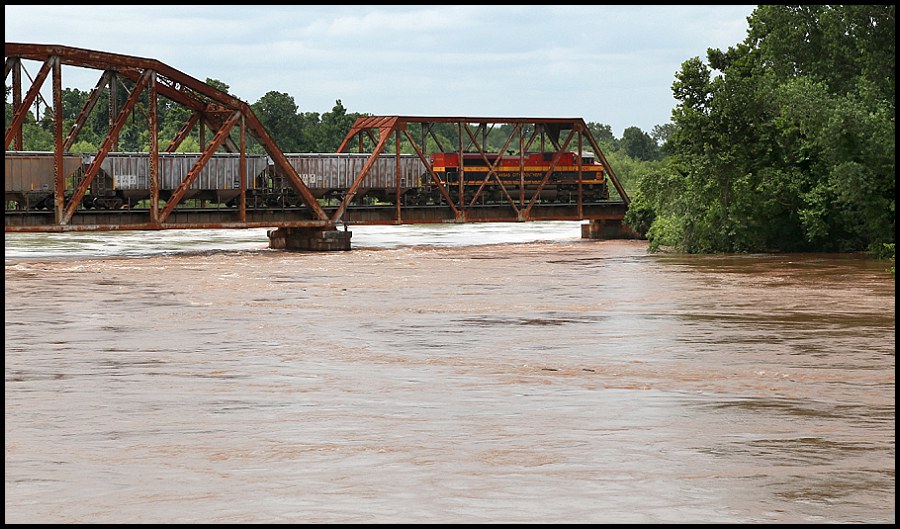

A tighter view of the east end of the bridge. The river is running about 40 feet higher than normal!

Brazos-2_WEB

Brazos-3_WEB

June 4, 2016

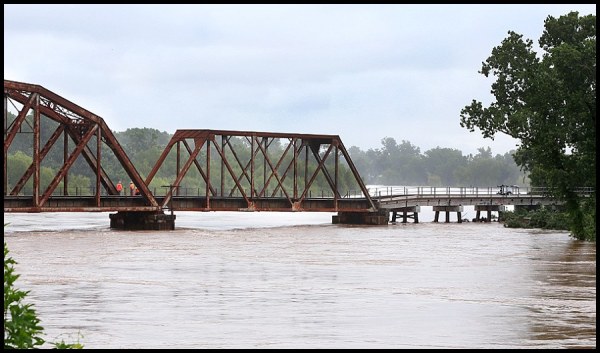

So much water for so long has compromised the easternmost pier of the bridge. The Glidden sub is closed up to 14 days according to the UP. The 30-40 trains per day that pass through here are being re-routed. Note that 50-60 feet of the east approach to the bridge is now visible because all of the trees that obscured it have been washed away! To give you a better idea of the scale of the change in the river, the employees in the next image are standing above where the shoreline was.

B-1_WEB

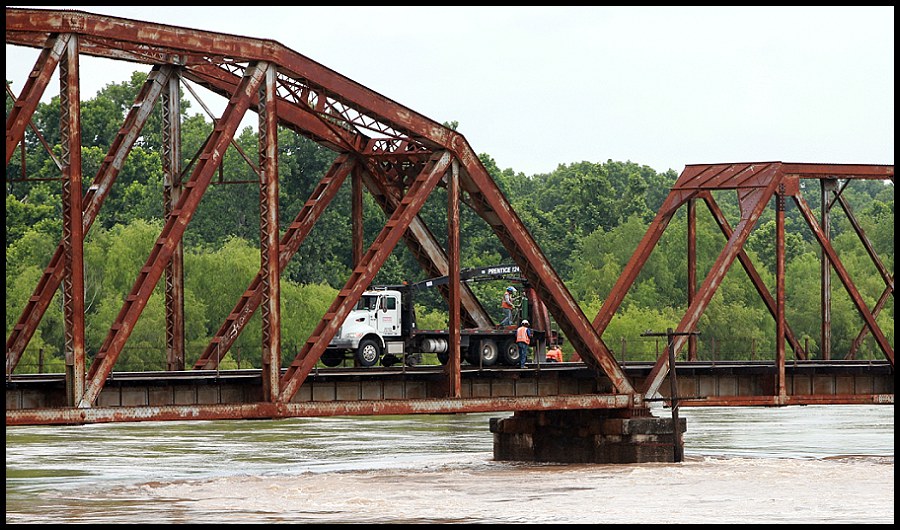

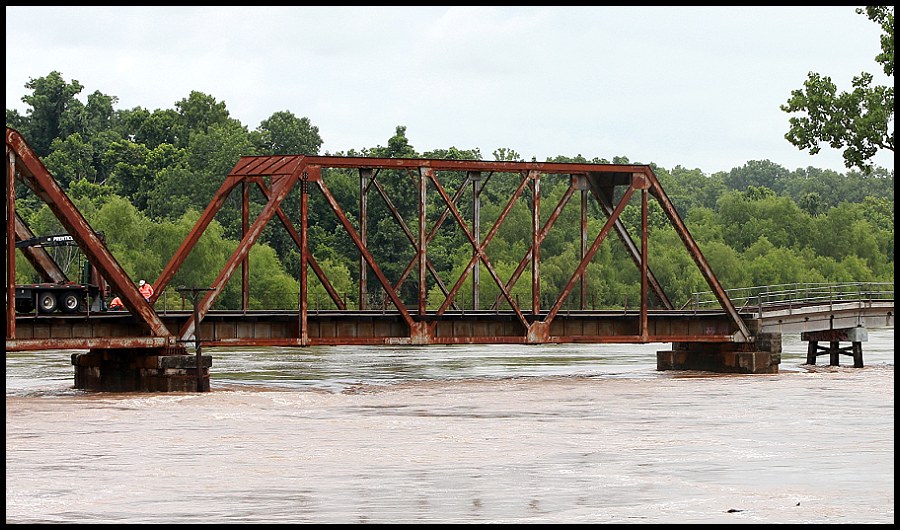

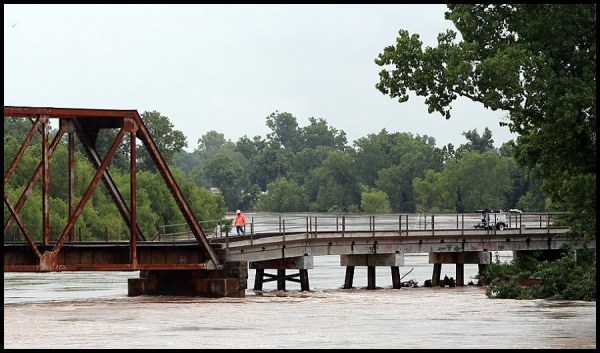

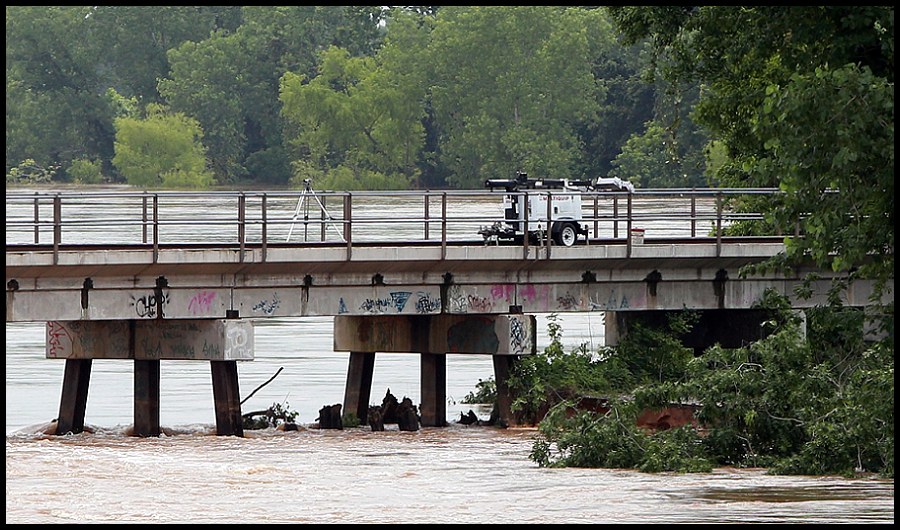

It’s clear that pier between the approach and the truss has settled 3-4 feet. What isn’t clear is the condition of the piers supporting the approach, to the extent they’ve been exposed to unprecedented water flows.

B-5_WEB

B-6_WEB

B-4_WEB

B-9_WEB

June 6, 2016

The rain has stopped so it’s time for another visit to see what recovery efforts might be underway.

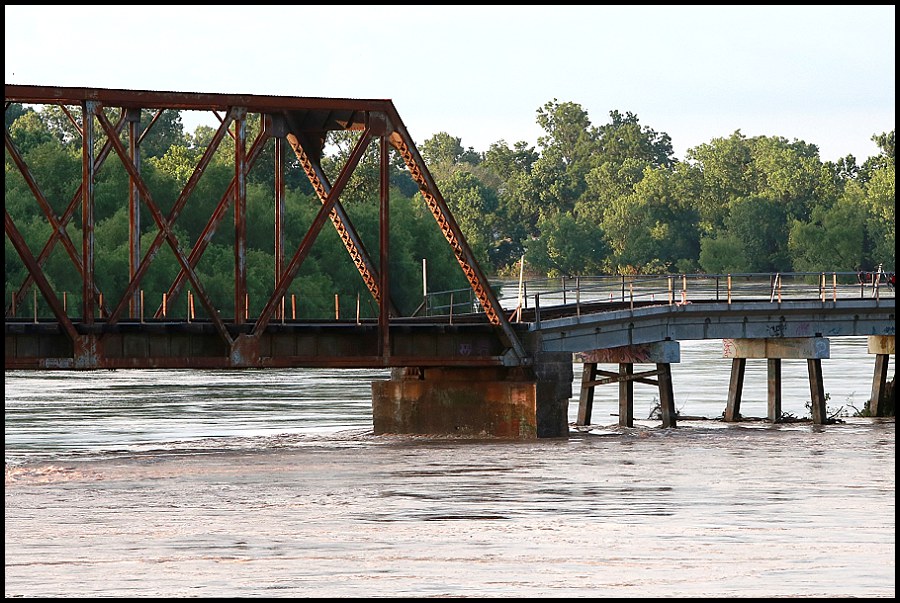

The river appears to be down a good 5 feet or so, but there’s a long way to go to the typical depth of 15 feet compared to the 54 feet depth when it crested on June 4.6-6-8_WEB

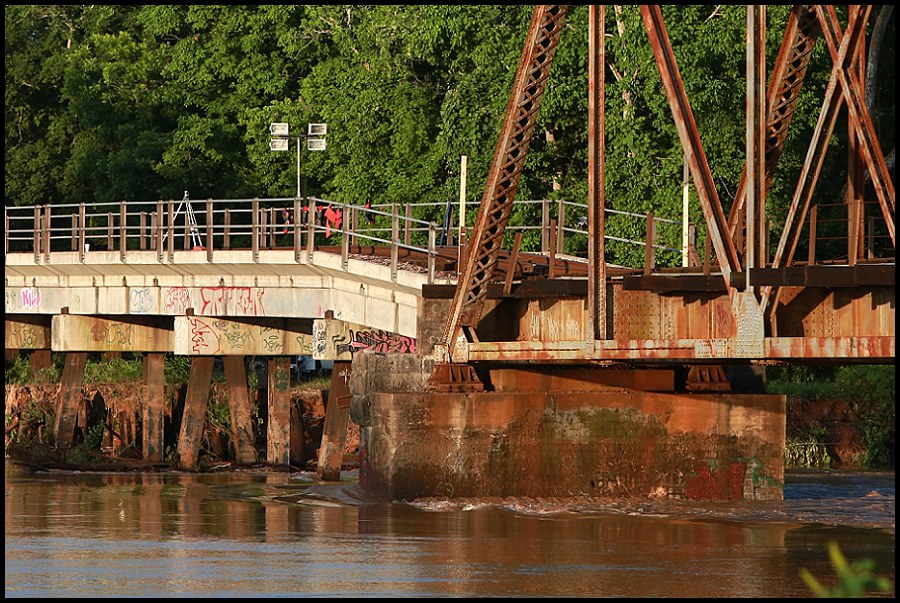

The next 2 views show the north face of the bridge.

6-6-5_WEB

6-6-6_WEB

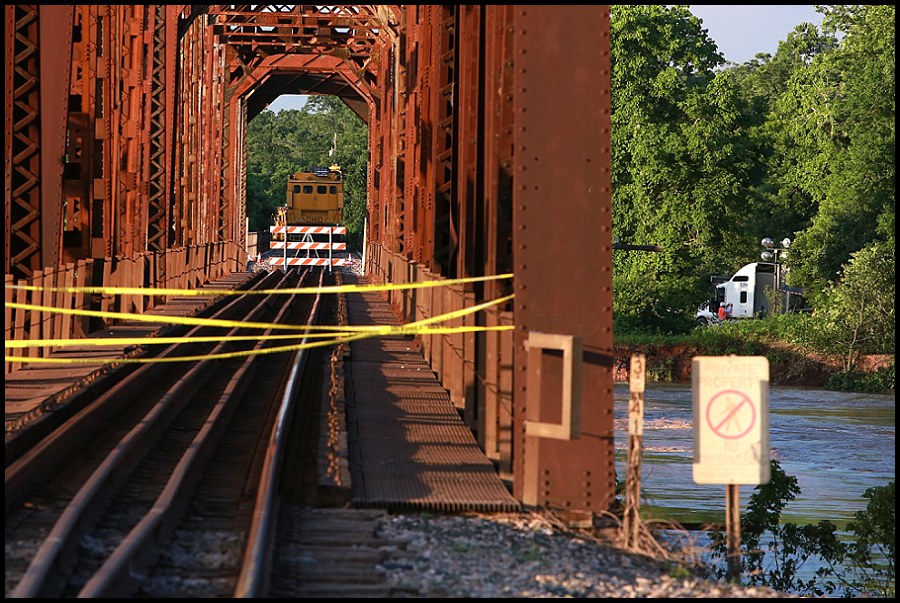

I assume the yellow tape is to provide a legal fig leaf should some miscreant venture across the bridge, stumble, and fall to a watery demise.

6-6-4_WEB

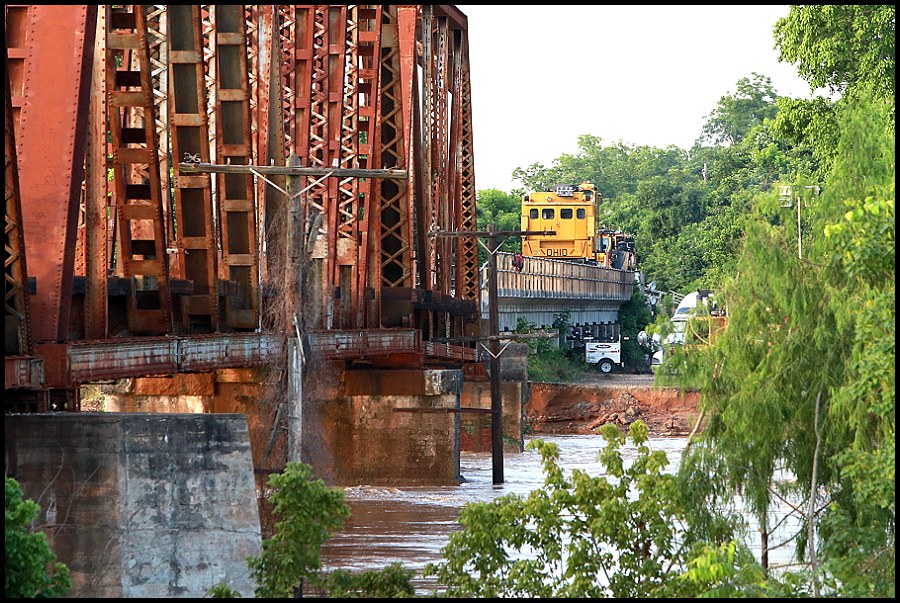

An OHIO crane (hopefully not made in China) is visible on the east approach to the bridge.

6-6-2_WEB

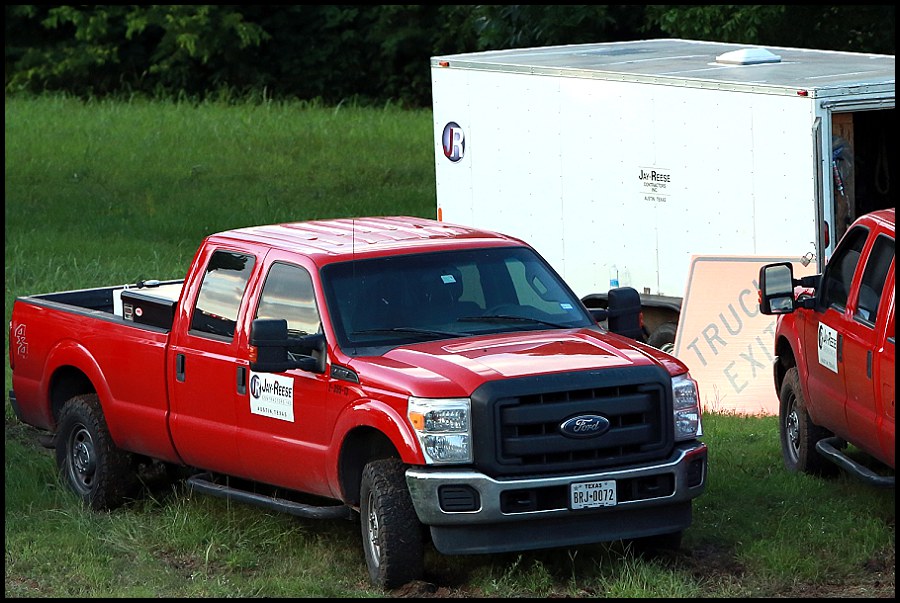

UP has selected Jay-Reese Contractors, out of Austin, to get this bridge back in service.

6-6-13_WEB

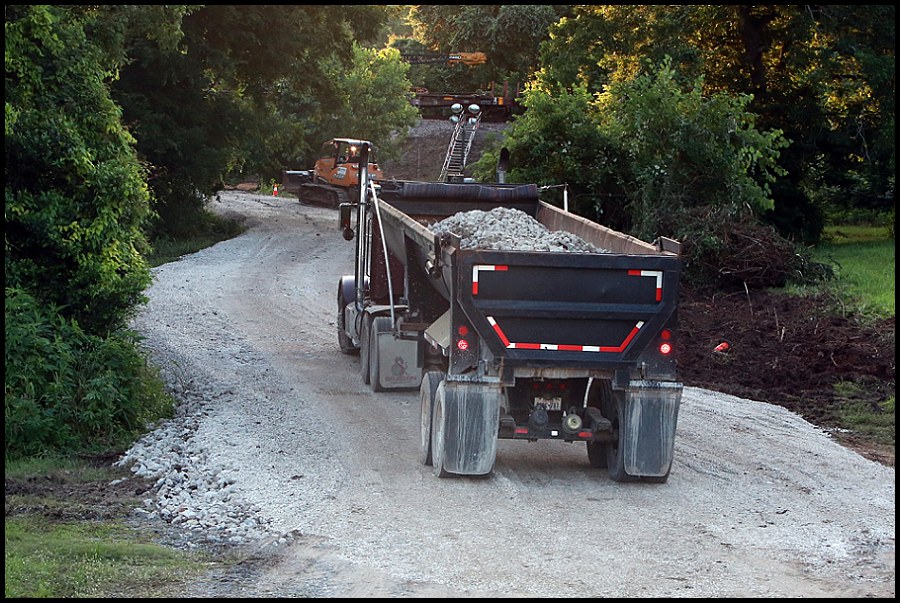

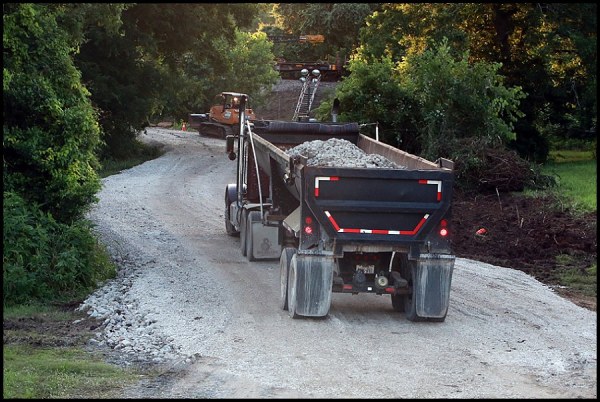

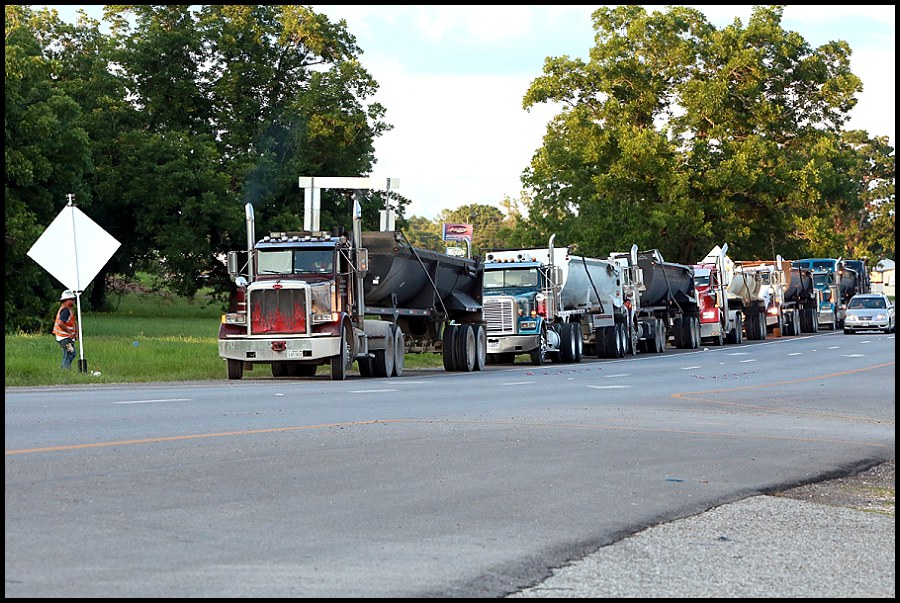

Before they can work on the bridge, they have to be able to get to it. They’ve cut a road through the trees and mud to provide access. This is the line of 18-wheelers waiting their turn to dump their loads of rock.

6-6-9_WEB

It’s a good 200 feet from Hwy 90A to the right-of-way.

6-6-10_WEB

I’ll try to document as much of the work as possible over the next couple of weeks. Stay tuned…
